ÜBER DAS PRODUKT
This side shift smoothly manoeuvres around tight corners, saving the driver precious time.
VORTEILE
High-mounted cylinder for superior visibility
Extremely strong and robust, single-piece upper S-bar
Fully protected bearings
Grease fittings on top of the upper bar
Ideal for intensive use
Expertly manufactured
High mechanical strength
BESCHREIBUNG

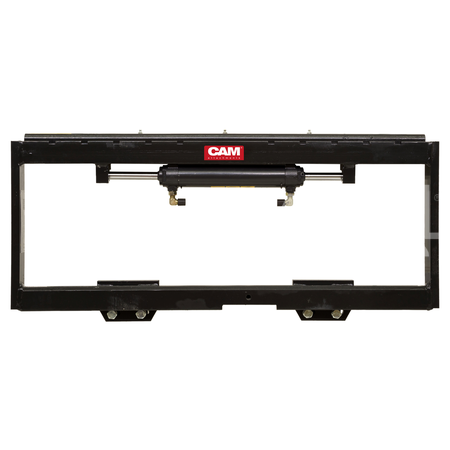

With this TRF side shift,moving loads from side to side is done quickly and easily. It enables fast lifting and accurate placement, which is why it’s one of the most popular attachments in use today. And the advantages don’t end there. The overall handling time is reduced significantly, there's substantially less chance of damaging pallets and products, and the manoeuvrability increases, even in tight spaces. The TRF sideshifter is ideal for intensive use. Its double-action cylinder ensures consistent shifting speeds in either direction and can quickly be taken apart for easy maintenance. The upper bar is made from a single piece of steel, ensuring both strength and durability. Suitable for most types of lift trucks, FEM 3 forks are a popular choice. They’re easy to recognise by the 20° chamfer on the fork hook that’s used to mount them. These forklift forks are made of high-quality chromium-manganese steel, guaranteeing high mechanical strength. Plus, they’re expertly manufactured with a smooth, refined finish.
ZUSÄTZLICHE INFORMATIONEN
Einheit: Stück
Gewicht (kg): 91
Typ: Seitenschieber ISO/FEM mit Gleitschienen
Befestigungsklasse (ISO 2328): FEM3
Kapazität auf dem Lastschwerpunkt (Q1) (kg): 3500
Lastschwerpunkt (LC) (mm): 500
Anbaudicke (LL) (mm): 80
Gesamthub Seitenschieber: 100+100 mm
Minimale Breite des Gabelträgers (W6) (mm): 950
Maximale Breite des Rahmens (W4) (mm): 1070
Lastschwerpunkt Horizontal (HCG) (mm): 35
Gewicht des Anbaugeräts (G) (kg): 83
Modell des Anbaugeräts: TRF335.107P
Maximaler Arbeitsdruck-Seitenschub (Bar): 220
