ÜBER DAS PRODUKT
This sideshifter smoothly manoeuvres around tight corners, saving the driver precious time.
VORTEILE
Reinforced corners
Extremely strong, single-piece upper bar
Cylinder connects using a single spring pin
User-friendly design
Expertly manufactured
High mechanical strength
BESCHREIBUNG

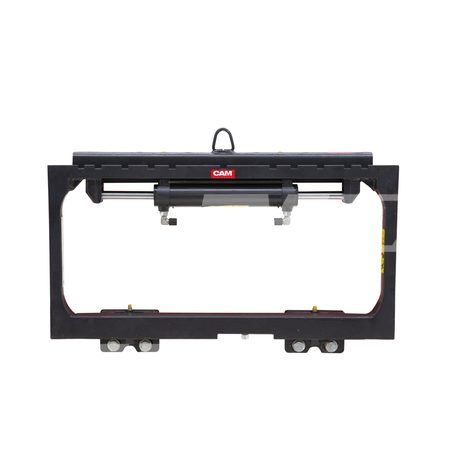

With this SHP side shift forklift,moving loads from side to side is done quickly and easily. It enables fast lifting and accurate placement, which is why it’s one of the most popular attachments in use today. And the advantages don’t end there. The overall handling time is reduced significantly, there's substantially less chance of damaging pallets and products, and the manoeuvrability increases, even in tight spaces. Users will love working with this high-quality side shift thanks to its clever and user-friendly design. The new layout consists of two forged side beams, two reinforcement strips and a hot-rolled upper bar. It has reinforced corners and the cylinder is connected with a spring pin. Suitable for most types of lift trucks, FEM 3 forks are a popular choice. They’re easy to recognise by the 20° chamfer on the fork hook that’s used to mount them. These forklift forks are made of high-quality chromium-manganese steel, guaranteeing high mechanical strength. Plus, they’re expertly manufactured with a smooth, refined finish.
ZUSÄTZLICHE INFORMATIONEN
Einheit: Stück
Gewicht (kg): 60
Typ: Seitenschieber ISO/FEM mit Gleitschienen
Befestigungsklasse (ISO 2328): FEM3
Kapazität auf dem Lastschwerpunkt (Q1) (kg): 3500
Lastschwerpunkt (LC) (mm): 500
Anbaudicke (LL) (mm): 68
Gesamthub Seitenschieber: 100+100 mm
Minimale Breite des Gabelträgers (W6) (mm): 980
Maximale Breite des Rahmens (W4) (mm): 1250
Lastschwerpunkt Horizontal (HCG) (mm): 29
Gewicht des Anbaugeräts (G) (kg): 77
Modell des Anbaugeräts: SHP335.125P.CD1
Maximaler Arbeitsdruck-Seitenschub (Bar): 220
